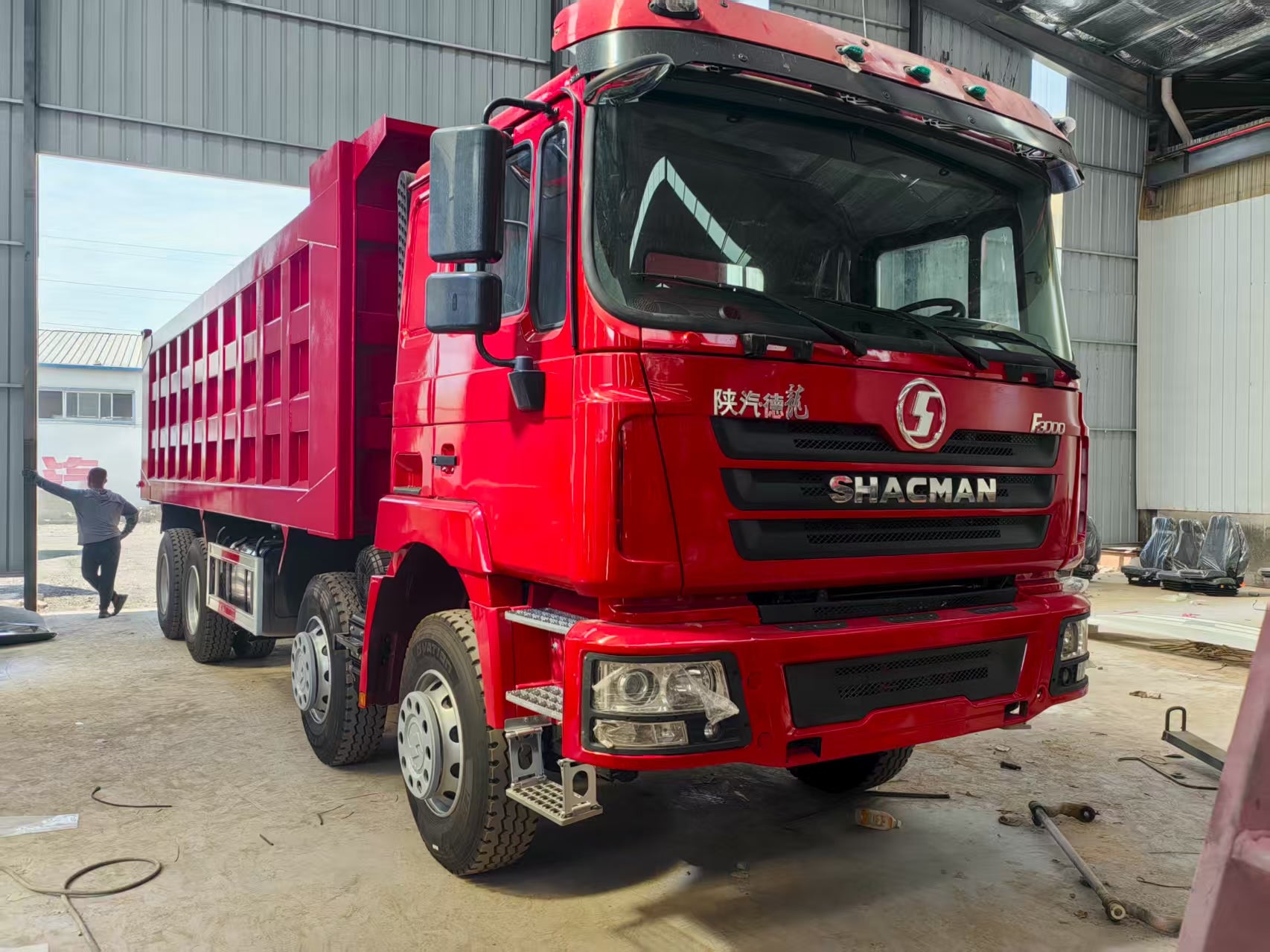

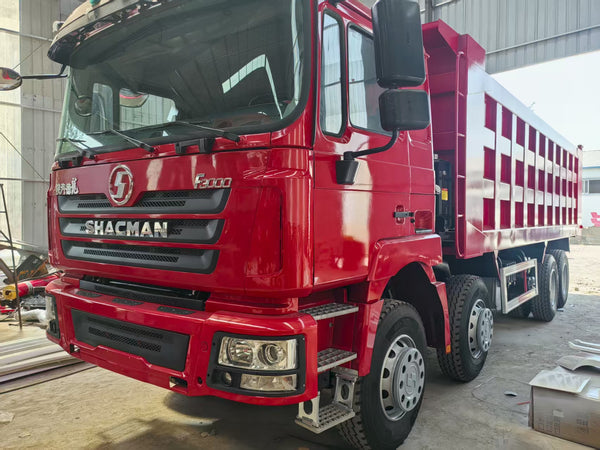

Shacman tipper truck Model 2215DU406
DÉTAILS DU PRODUIT
*Main Parameters**
- **MODEL:** SX3315DU406
- **Driver position:** Left Hand Drive (LHD)
- **Driving type:** 8×4
- **Wheelbase (mm):** 1800+3975+1400
- **Max. Speed (km/h):** 85
- **Engine:**
- **Brand:** WEICHAI
- **Model:** WP12.380E301
- **Emission Standard:** EURO Ⅲ
- **Rated output power:** 294kW/400HP
- **Displacement (L):** 11.596
- **Transmission:**
- **Brand:** FAST
- **Model:** 10JSD180+QH50
- **Front Axle:**
- **Brand:** HANDE
- **Model:** MAN 9.5T
- **Rear Axle:**
- **Brand:** HANDE
- **Model:** 16T MAN double reduction axle
- **Speed ratio:** 5.92
- **Clutch:** C430 diaphragm clutch
- **Steering Gear:** ZF technology
- **Frame:** 850×300 (8+7)
- **Suspension:** Front/Rear multi-leaf spring (four main leaves + four U-bolts)
- **Fuel Tank:** 380L iron fuel tank
- **Wheels & Tires:** 12R22.5 × 12 pcs
**Brakes:**
- Service brake: Dual-circuit compressed air brake
- Parking brake: Spring-actuated air release brake
- Auxiliary brake: Engine exhaust brake
- **Cabin:**
F3000 medium-long flat-top cab (without roof deflector), hydraulic main seat, four-point hydraulic suspension, single A/C system, manual window regulator, manual tilting mechanism, steel bumper, three-step entry steps, oil-bath air cleaner, standard exhaust, oil pan guard, tail lamp guard, 165Ah maintenance-free battery.
- **Upper Body:**
Front tipper mechanism: 8000×2300×1800(mm)
Container thickness: Bottom 10mm / Sides 8mm
